SPECIFICATIONS

Brand Name: NONE

Certification: NONE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: None

Origin: Mainland China

Features:

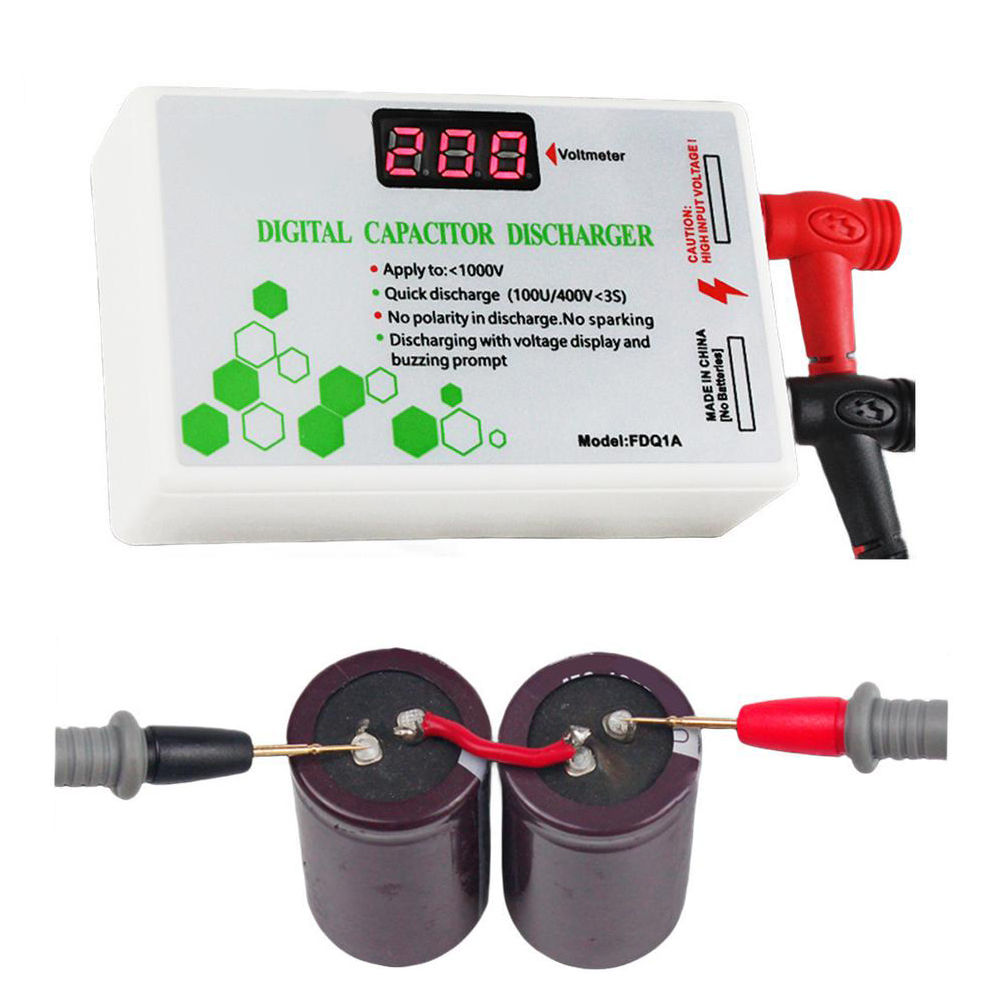

1. This digital capacitor discharger is designed for the discharge of capacitors (<1000V) in the repair of household appliances, digital cameras, mobile phones, cars, TVs, etc.

2. Designed for maintenance operation safety, it can discharge high DC current to a safe range to for ensure no risk of electric shock. Effectively avoid electric shock and short circuit.

3. The voltmeter can display the voltage change during the discharge process. When the voltmeter is turned off, the discharge is completed.

4. No need to distinguish polarity during the discharge process.

5. Can be used as a digital voltmeter (10-500V) to test DC/AC voltage.

A. Discharger self-test: Use the test pen to briefly touch the AC110-220V power supply, there is a screen display and a buzzer prompt, indicating that the discharger is working properly.

B. The test pen touches the capacitor without polarity and starts to discharge. The screen displays or there is a buzzer prompt.

C. The discharger discharges to about 6V, the screen goes out, and the prompt tone disappears. After 2-5 seconds, the discharger can continue to discharge to below 2V.

Notes

Only discharge high-voltage capacitors (10-1000V) offline, not used as electronic loads (discharging is prohibited when charging). Double-layer electrostatic capacitors cannot be discharged.

Specifications:

Part name: discharger

Material: plastic

Color: blue, green

Model: FDQ1

Applicable voltage: <1000V

Fast discharge: (100U/400V, ≈5S)

size: 95mm*58mm*31mm

Package contents:

1 digital capacitor discharger

1 test probe (black and red)

1 user manual

Note:

Please allow 1mm error due to manual measurement.

Due to differences between different monitors, the picture may not reflect the actual color.
